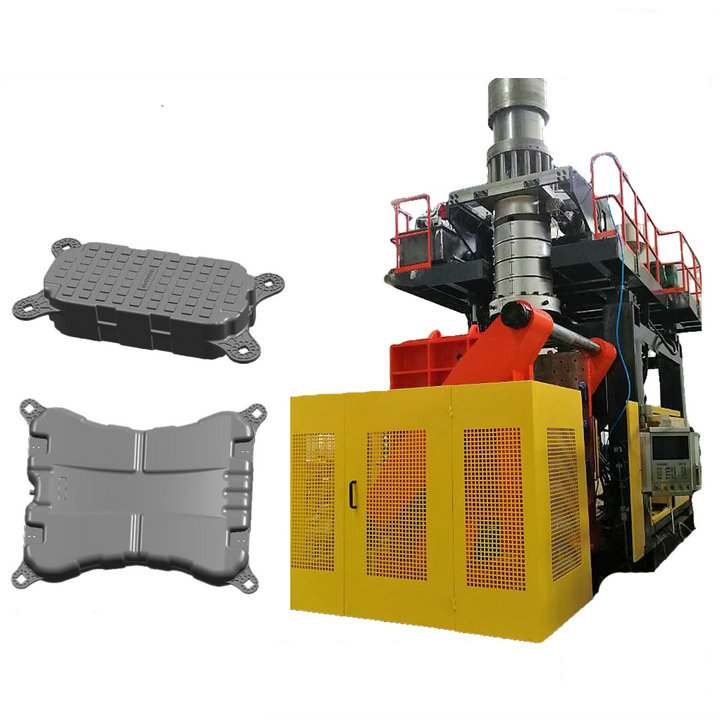

Plastic HDPE Solar Panel Water Channel Buoy Extrusion Blow Molding Machine

Name: Plastic HDPE Solar Panel Water Channel Buoy Extrusion Blow Molding Machine
Brand: DAWSON
Price: 15 USD

Quality Plastic HDPE Solar Panel Water Channel Buoy Extrusion Blow Molding Machine wholesale

Brand Name : DAWSON

Model Number : ABLD100

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 15,700 ~ 95,000 / set

Payment Terms : L/C, T/T

Supply Ability : 20 set/month

Delivery Time : 5-8 work days

Packaging Details : Standard Export Packing

Max. product volume : 120L

Dry cycle : 360 PC/H

Screw diameter : 100 MM

Screw L/D ratio : 28 L/D

Screw drive power : 55 KW

Screw heating capacity : 22 KW

No. of heating zone : 5 zone

Output of HDPE : 200 KG/H

Oil pump drive power : 22 KW

Clamping force : 600 KN

Max. size of mold : 1000x1300

Material storage : 14 L

Template size : 1150x1150

Mold stroke : 550-1350 MM

Size of machine : 5.4x2.5x4.5

Weight of machine : 15 TON

Contact Now

plastic hdpe solar panel water channel buoy extrusion blow molding machine

The whole blow molding machine is equipped with bilingual operation panel

and automatic configuration from world famous brands to realize the advantages of simple operation

and high automation

Plastic HDPE Solar Panel Water Channel Buoy Extrusion Blow Molding Machine

Products Description

DAWSON MACHINERY & MOULD GROUP

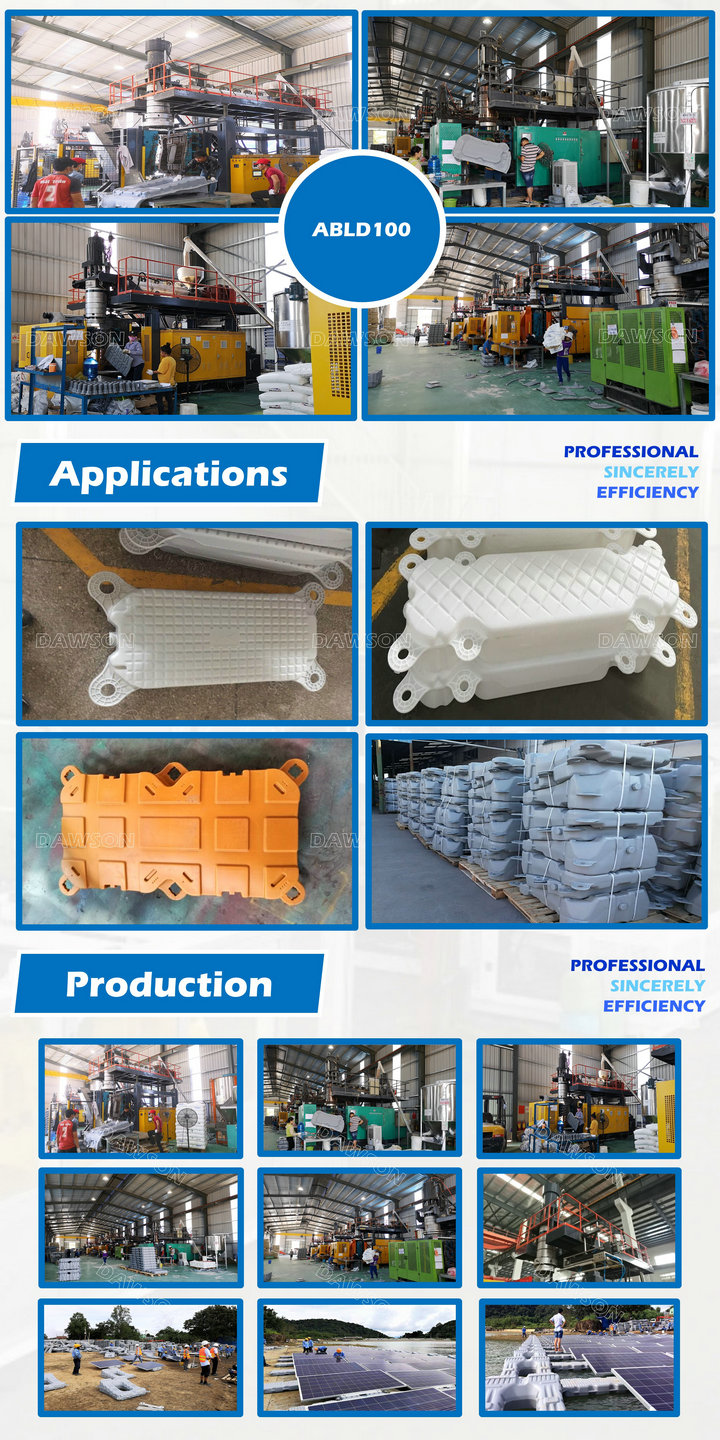

Extrusion Blow Molding Machine ABLD100
suitable for making medical bed board, pallet, floater, barrel to 120L
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.


Technical Parameters

Name	Units	ABLD100
Max.product volume	L	120
Screw diameter	MM	100
Screw drive power	KW	55
Output of HDPE	KG/H	200
Oil pump drive power	KW	22
Clamping force	KN	600
Max.size of mold	MM	1000*1300
Template size	MM	1150*1150
Mold stroke	MM	550-1350
Max.die diameter	MM	450
Size of machine	L×W×H	5.42.54.5
Weight of machine	TON	15

Details Images

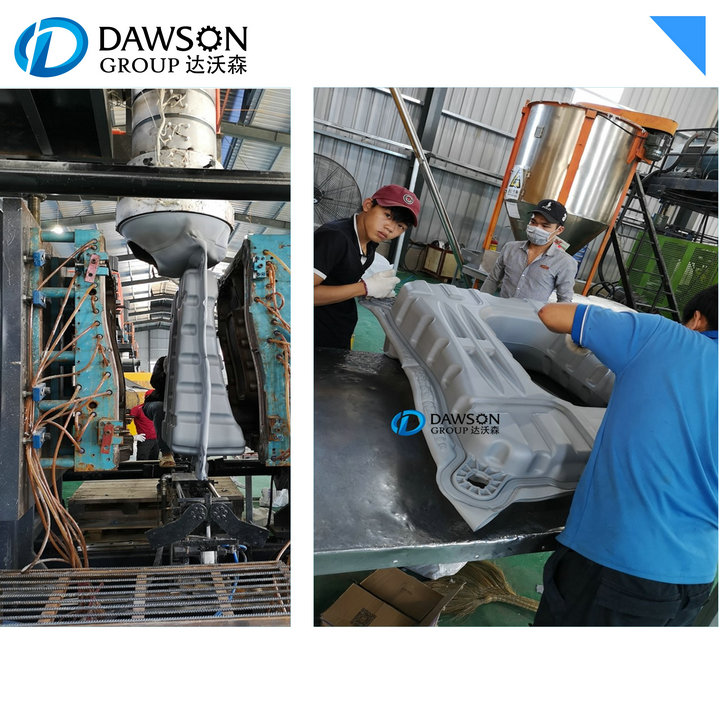

High Quality Mould

High Quality Blow Molding mould

 In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

 - We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
 treatment to HRC62
 - Double neck design available to change in future as a spare part necking
 - All mould can be made auto-deflashing or manual deflashing as per customer requests
 - Perfect mould cooling design to ensure the best moulding preformace
 - Available to provide 2D & 3D product drawing for customers
 - Available to send samples to customer for approval the product quality
 - We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

Company Profile

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

 DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

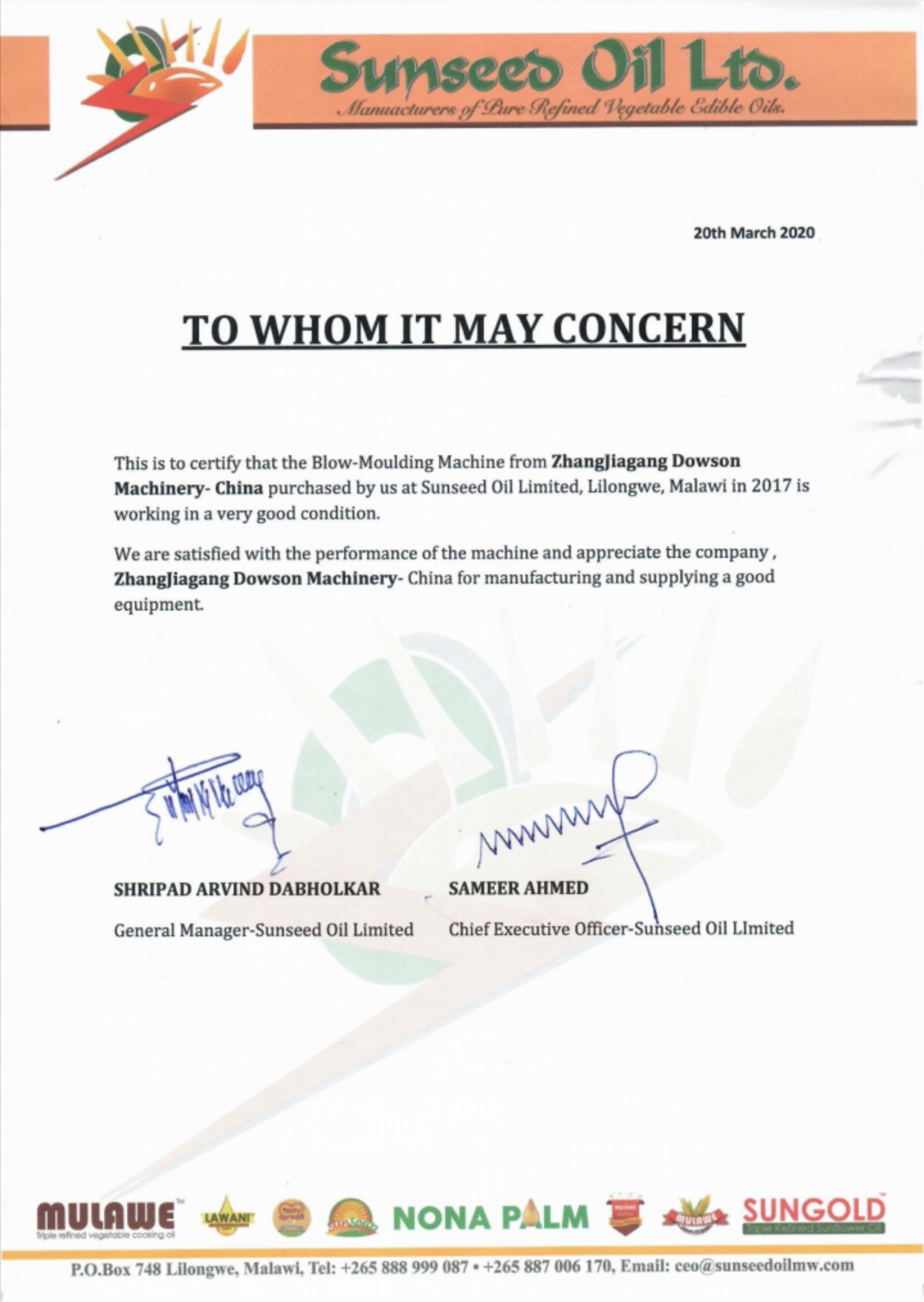

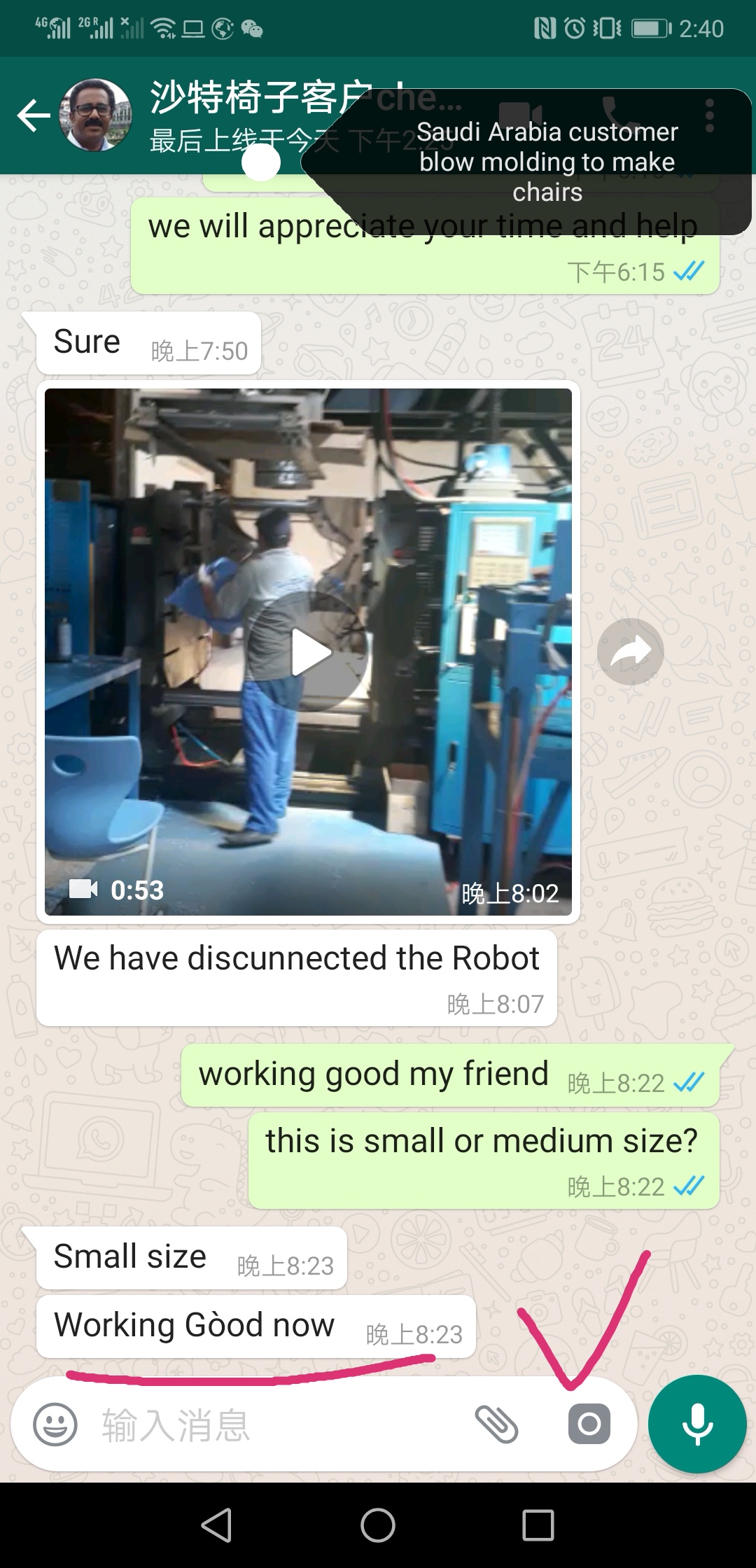

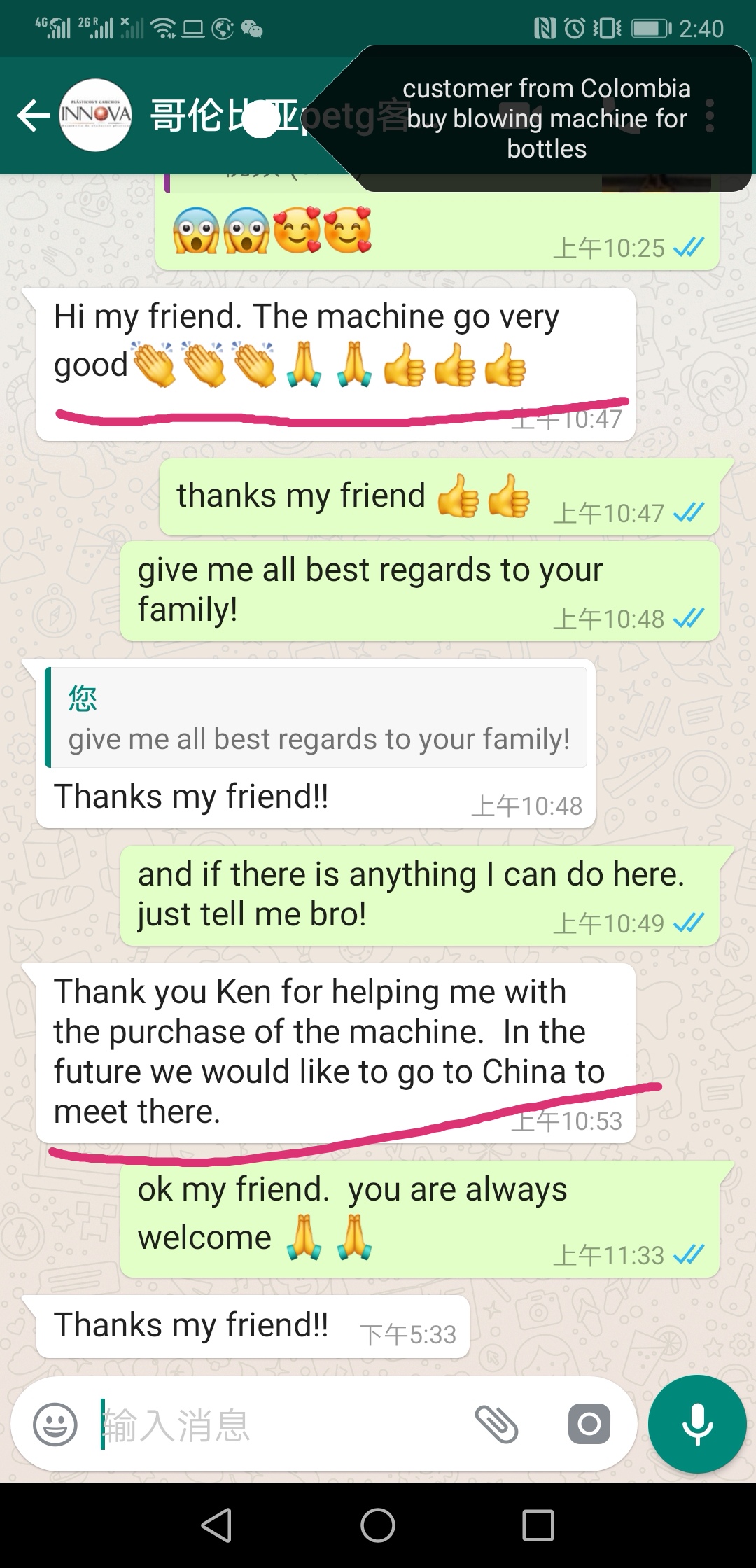

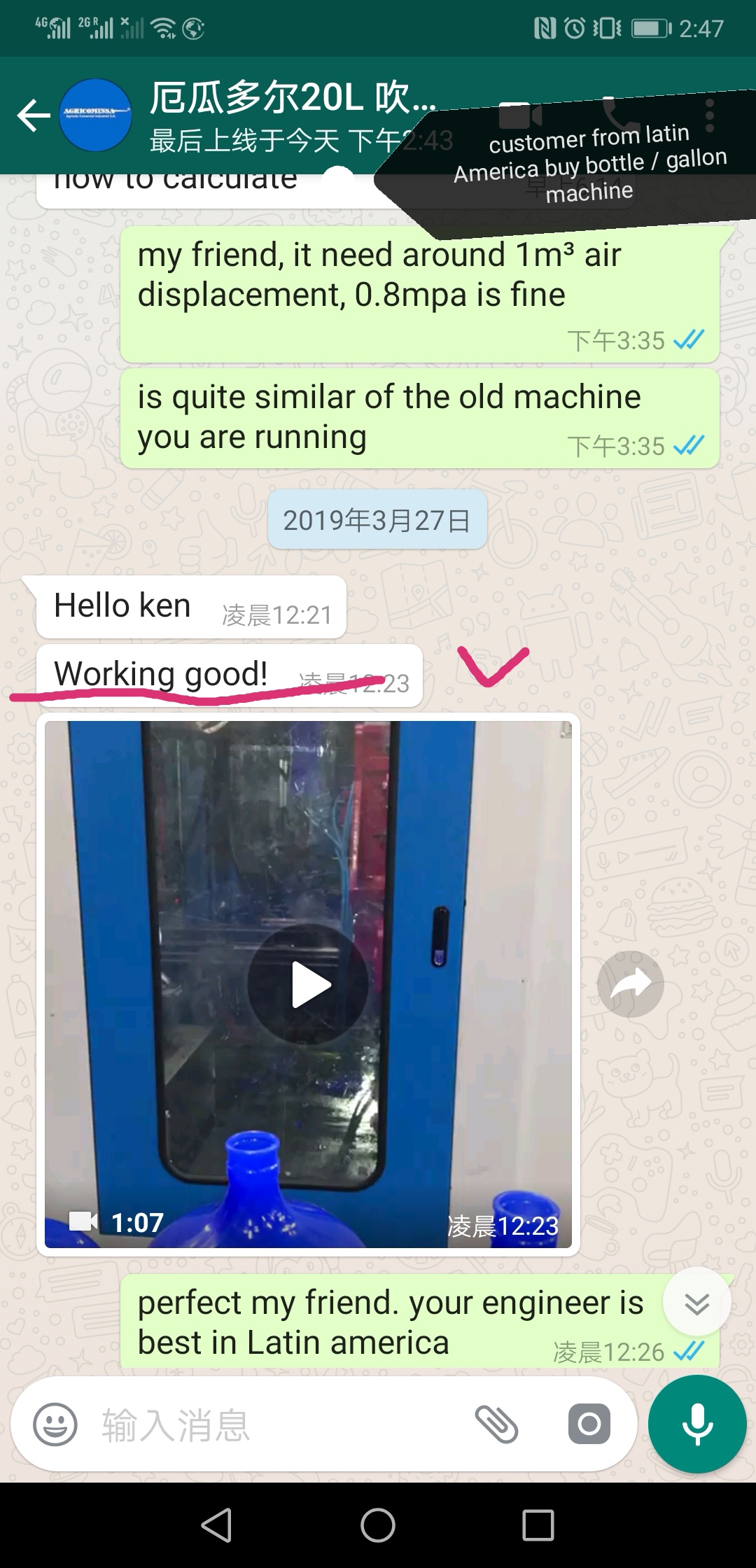

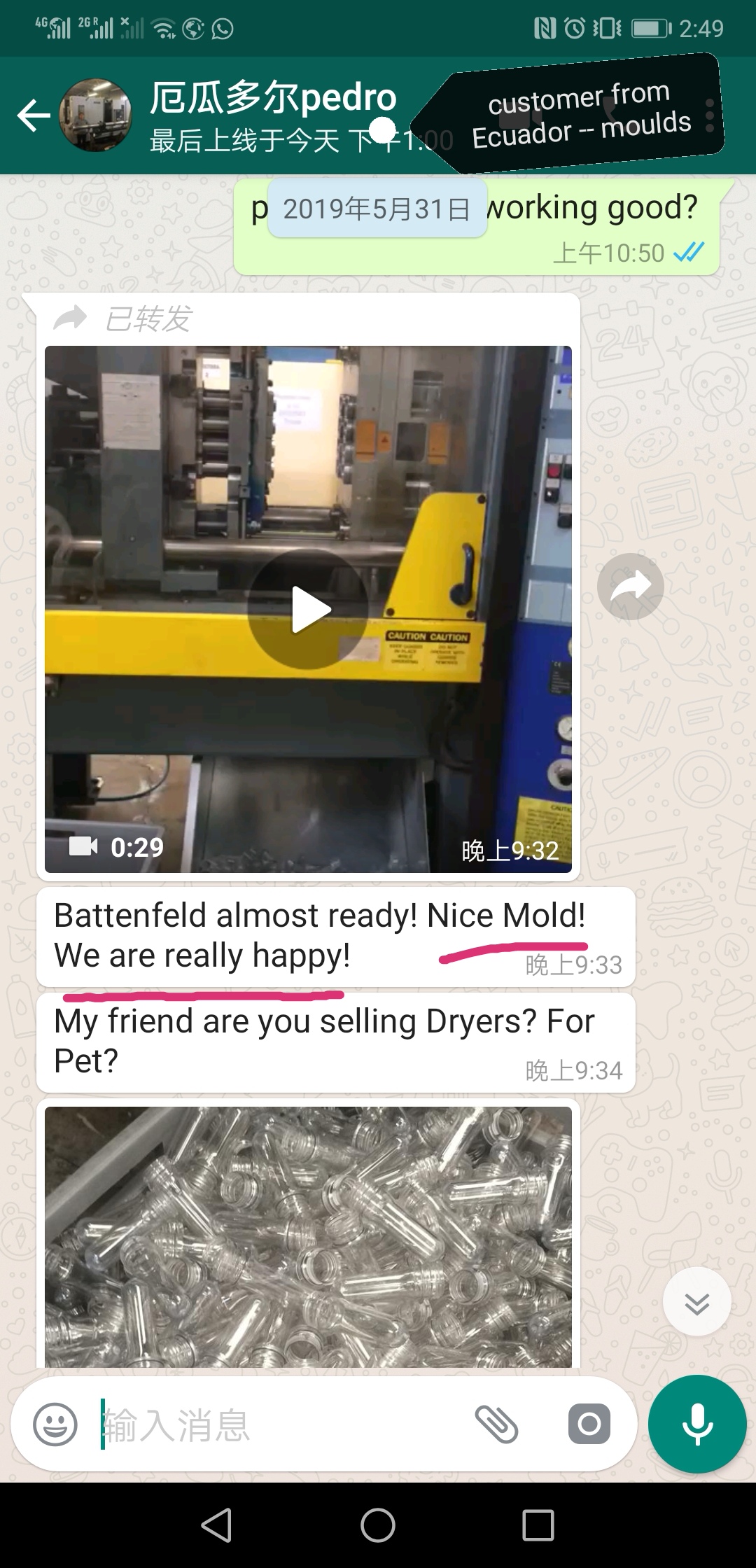

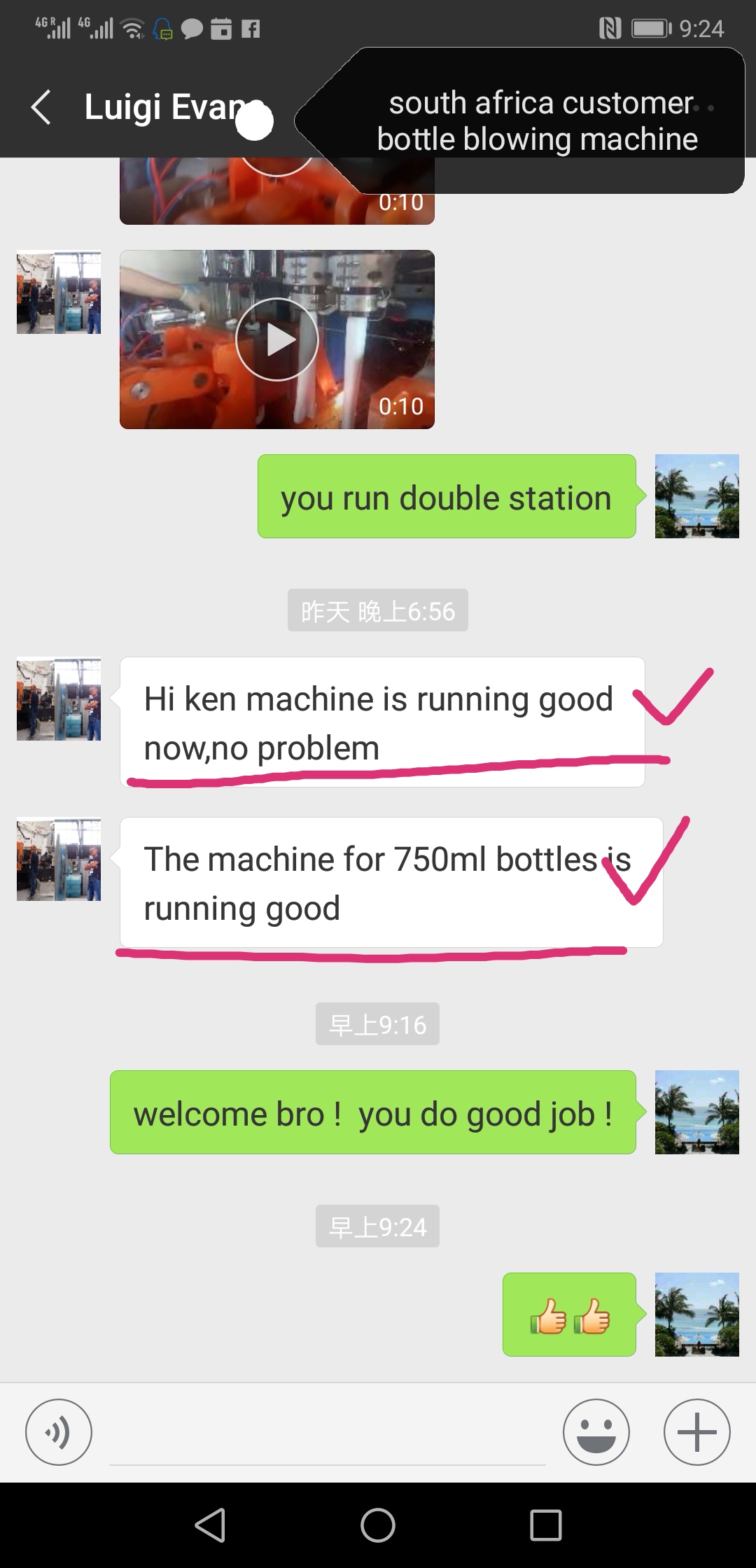

Customer Photos


Customer satisfaction is our eternal pursuit...

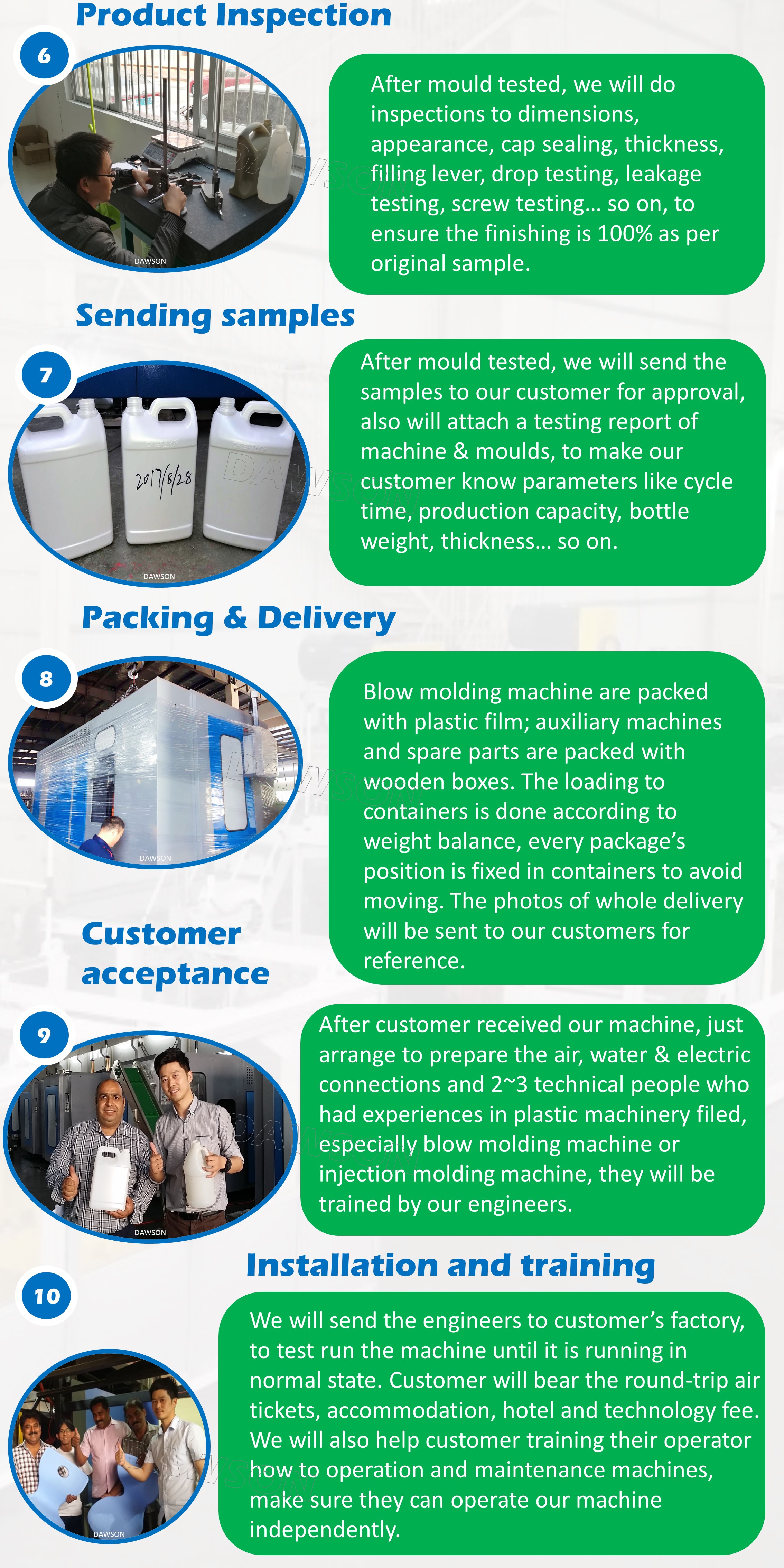

Our Service

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
